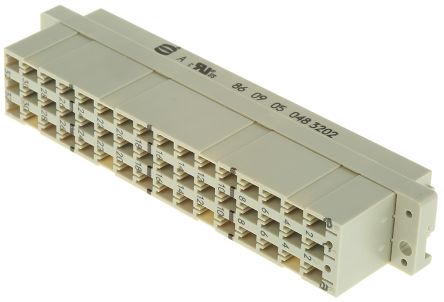

Harting 09 05 Series 48 Way 5.08mm Pitch, Type E, 3 Row, Straight DIN 41612 Connector, Socket [09050483202]; 923-1727
by HARTING
0₫
Mã kho: 9231727
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 48 |
| Gender | Female |
| Number of Rows | 3 |
| Body Orientation | Straight |
| Termination Method | Crimp |
| Row Loading | A/c/e |
| Type | E |
| Pitch | 5.08mm |
| Current Rating | 6A |
| Contact Material | Copper Alloy |
| Maximum Contact Resistance | 20mΩ |
| Minimum Operating Temperature | -55°C |
| Series | 09 05 |
| Maximum Operating Temperature | +125°C |
| Housing Material | Thermoplastic |
