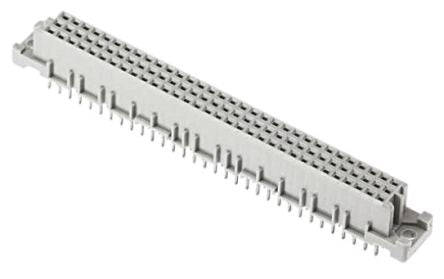

Harting DIN 41 612 Series, 96 Way Rectangular Connector Socket, 2.54mm Pitch [09032966825222]; 757-7967
by HARTING
0₫
Mã kho: 7577967
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 96 |
| Gender | Female |
| Termination Type | Solder |
| Number of Poles | 96 |
| Current Rating | 2A |
| Pitch | 2.54mm |
| Body Orientation | Straight |
| Series | DIN 41 612 |
| Housing Material | Thermoplastic |
| Length | 94.9mm |
| Width | 10.6mm |
| Depth | 11.6mm |
| Dimensions | 94.9 x 10.6 x 11.6mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Contact Material | Copper Alloy |
