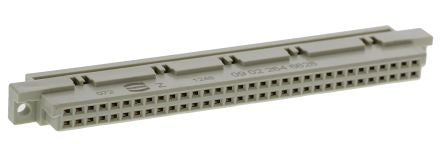

Harting 64 Way 2.54mm Pitch, Type B Class C2, 2 Row, Right Angle DIN 41612 Connector, Socket [09022646828]; 923-0749
by HARTING
0₫
Mã kho: 9230749
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 64 |
| Gender | Female |
| Number of Rows | 2 |
| Body Orientation | Right Angle |
| Termination Method | IDT |
| Row Loading | A/b |
| Type | B |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Mounting Type | Cable Mount |
| Class Rating | C2 |
| Current Rating | 2A |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
