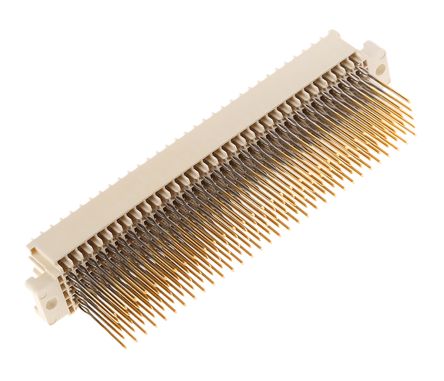

Harting Har-Bus 64 Series 160 Way 2.54mm Pitch, Type harbus 64 Class C2, 5 Row, Straight DIN 41612 Connector, Socket [02021602301]; 253-9594
by HARTING
0₫
Mã kho: 2539594
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 160 |
| Gender | Female |
| Number of Rows | 5 |
| Body Orientation | Straight |
| Termination Method | Press-In |
| Row Loading | Z/a/b/c/d |
| Type | Harbus 64 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Mounting Type | Through Hole |
| Class Rating | C2 |
| Current Rating | 1A |
| Contact Material | Copper Alloy |
| Maximum Contact Resistance | 30mΩ |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
| Series | Har-Bus 64 |
