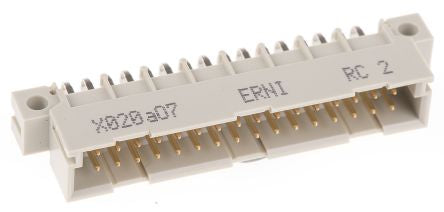

ERNI ERNIPRESS Series 32 Way 2.54mm Pitch, Type B/2 Class C1, C2, 2 Row, Right Angle DIN 41612 Connector, Plug [384265]; 170-6880
by ERNI
0₫
Mã kho: 1706880
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 32 |
| Gender | Male |
| Number of Rows | 2 |
| Body Orientation | Right Angle |
| Termination Method | Solder |
| Row Loading | A/b |
| Type | B/2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Class Rating | C1, C2 |
| Current Rating | 2A |
| Contact Material | Copper Alloy |
| Maximum Contact Resistance | 20mΩ |
| Maximum Operating Temperature | +125°C |
| Series | ERNIPRESS |
| Minimum Operating Temperature | -55°C |
| Housing Material | PBT |
