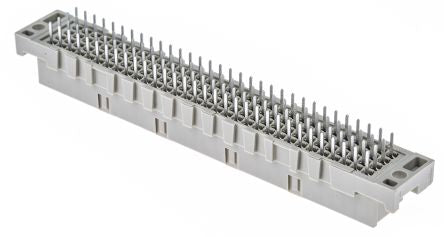

ERNI 128 Way 2.54mm Pitch, Type CD Class C2, 4 Row, Straight DIN 41612 Connector, Socket [254977]; 521-879
by ERNI
0₫
Mã kho: 521879
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 128 |
| Gender | Female |
| Number of Rows | 4 |
| Body Orientation | Straight |
| Termination Method | Solder |
| Row Loading | A/b/c/d |
| Type | CD |
| Pitch | 2.54mm |
| Mounting Type | Through Hole |
| Contact Plating | Gold |
| Class Rating | C2 |
| Current Rating | 2A |
| Contact Material | Copper Alloy |
| Maximum Contact Resistance | 20mΩ |
| Maximum Operating Temperature | +125°C |
| Housing Material | PBT |
| Minimum Operating Temperature | -55°C |
