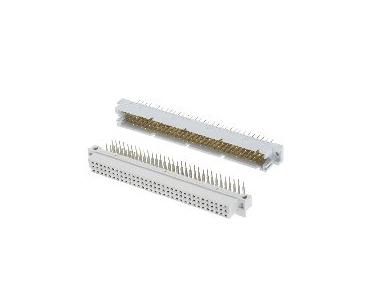

Amphenol FCI 96 Way 2.54mm Pitch, Type Rack Connector Class C2, 3 Row DIN 41612 Connector, Socket [86093968813755V1LF]; 182-2891
by Amphenol FCI
0₫
Mã kho: 1822891
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 96 |
| Gender | Female |
| Number of Rows | 3 |
| Body Orientation | Right Angle |
| Termination Method | Solder |
| Row Loading | A+B+C |
| Type | Rack Connector |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Mounting Type | Through Hole |
| Current Rating | 1.5A |
| Contact Material | Copper Alloy |
| Maximum Contact Resistance | 20mΩ |
| Maximum Operating Temperature | +125°C |
| Housing Material | Glass Filled Thermoplastic Polyester |
| Voltage Rating | 1 kV ac |
| Minimum Operating Temperature | -55°C |
