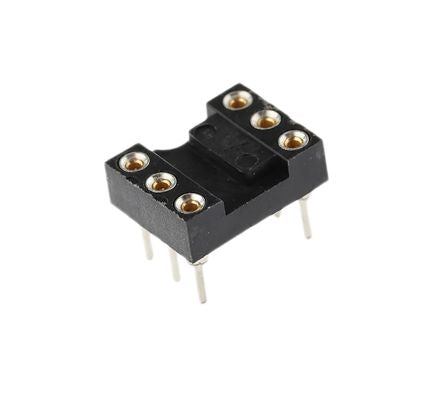

TE Connectivity 2.54mm Pitch Vertical 6 Way, Through Hole Stamped Pin Open Frame IC Dip Socket, 3A [2-1571551-1]; 680-1525
0₫
Mã kho: 6801525
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 6 |
| Mounting Type | Through Hole |
| Pin Type | Stamped |
| Pitch | 2.54mm |
| Row Width | 7.62mm |
| Frame Type | Open Frame |
| Termination Method | Solder |
| Contact Plating | Gold over Nickel |
| Current Rating | 3A |
| Orientation | Vertical |
| Length | 50.8mm |
| Width | 4.57mm |
| Depth | 17.78mm |
| Dimensions | 50.8 x 4.57 x 17.78mm |
| Maximum Operating Temperature | +105°C |
| Contact Material | Beryllium Copper |
| Housing Material | PCT |
| Minimum Operating Temperature | -55°C |
