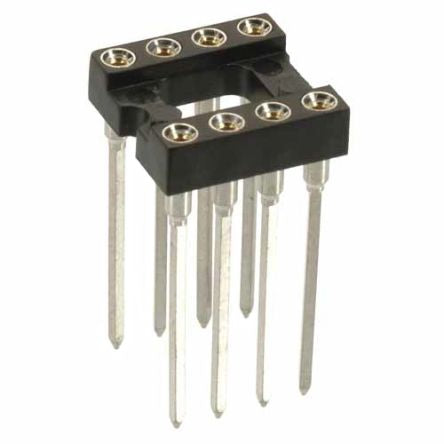

HARWIN D0 2.54 mm, 7.62 mm Pitch Vertical 8 Way, Through Hole Standard Pin Open Frame IC Dip Socket, 1A [D0808-42]; 161-3634
by HARWIN
0₫
Mã kho: 1613634
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 8 |
| Mounting Type | Through Hole |
| Pin Type | Standard |
| Pitch | 2.54 mm, 7.62 mm |
| Row Width | 7.62mm |
| Frame Type | Open Frame |
| Termination Method | Solder |
| Contact Plating | Gold, Tin over Nickel |
| Current Rating | 1A |
| Orientation | Vertical |
| Length | 10.1mm |
| Width | 10.02mm |
| Depth | 2.8mm |
| Dimensions | 10.1 x 10.02 x 2.8mm |
| Maximum Operating Temperature | +125°C |
| Housing Material | PCT |
| Contact Material | Beryllium Copper |
| Series | D0 |
| Voltage Rating | 100 V ac, 150 V dc |
| Minimum Operating Temperature | -55°C |
