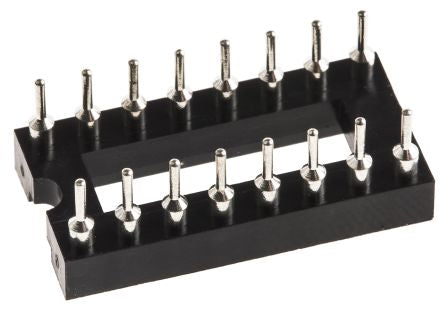

ASSMANN WSW 2.54mm Pitch Vertical 16 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 3A [AR 16 HZL-TT]; 674-2485
by ASSMANN WSW
0₫
Mã kho: 6742485
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 16 |
| Mounting Type | Through Hole |
| Pin Type | Turned |
| Pitch | 2.54mm |
| Row Width | 7.62mm |
| Frame Type | Open Frame |
| Termination Method | Solder |
| Contact Plating | Tin |
| Current Rating | 3A |
| Orientation | Vertical |
| Length | 20.32mm |
| Width | 10.16mm |
| Depth | 3mm |
| Dimensions | 20.32 x 10.16 x 3mm |
| Minimum Operating Temperature | -40°C |
| Voltage Rating | 100 V ac |
| Housing Material | PBT |
| Maximum Operating Temperature | +105°C |
| Contact Material | Brass, Phosphor Bronze |
