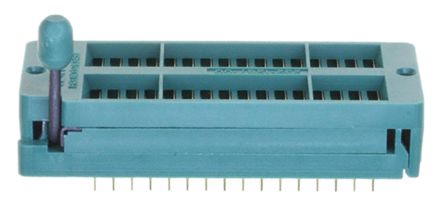

3M 2.54mm Pitch Vertical 32 Way, Through Hole Closed Frame ZIF IC Dip Socket, 1A [232-1287-00-0602]; 203-9549
by 3M
0₫
Mã kho: 2039549
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 32 |
| Mounting Type | Through Hole |
| Pitch | 2.54mm |
| Row Width | 11.43mm |
| Frame Type | Closed Frame |
| Termination Method | Solder |
| Contact Plating | Gold over Nickel |
| Current Rating | 1A |
| Orientation | Vertical |
| Length | 68.7mm |
| Width | 11.6mm |
| Depth | 22.9mm |
| Dimensions | 68.7 x 11.6 x 22.9mm |
| Contact Material | Beryllium Copper |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +150°C |
| Housing Material | PSU |
