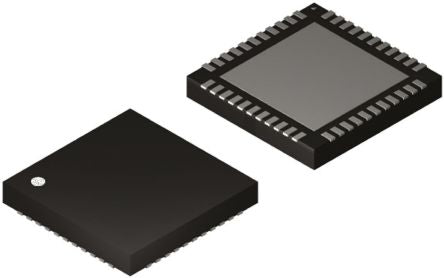

dsPIC33FJ64MC804-I/PT Microchip, 16bit DSP 40MHz 64 kB Flash 44-Pin TQFP [DSPIC33FJ64MC804-I/PT]; 178-4149
by Microchip
0₫
Mã kho: 1784149
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency | 40MHz |
| Data Bus Width | 16bit |
| RAM Size | 16 kB |
| Instruction Set Architecture | RISC |
| Program Memory Size | 64 kB |
| Program Memory Type | Flash |
| Mounting Type | Surface Mount |
| Package Type | TQFP |
| Pin Count | 44 |
| Typical Operating Supply Voltage | 3.3 V |
| Number of UART Channels | 2 |
| Number of I2C Channels | 1 |
| Maximum Operating Temperature | +85 °C |
| Height | 1mm |
| Dimensions | 10 x 10 x 1mm |
| Number of SPI Channels | 2 |
| Number of CAN Channels | 1 |
| Length | 10mm |
| Width | 10mm |
| Minimum Operating Temperature | -40 °C |
| ADCs | 9-ch x 10 bit, 9-ch x 12 bit |
| Number of Timers | 5 |
