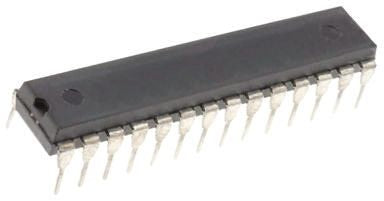

DSPIC33FJ64MC802-I/SP Microchip, 16bit DSP 40MIPS 64 kB Flash 28-Pin SPDIP [DSPIC33FJ64MC802-I/SP]; 549-356
by Microchip
0₫
Mã kho: 549356
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency | 40MIPS |
| Data Bus Width | 16bit |
| RAM Size | 16 kB |
| Instruction Set Architecture | RISC |
| Program Memory Size | 64 kB |
| Program Memory Type | Flash |
| Mounting Type | Through Hole |
| Package Type | SPDIP |
| Pin Count | 28 |
| Typical Operating Supply Voltage | 3 → 3.6 V |
| Number of UART Channels | 2 |
| Pulse Width Modulation | 2 x 16 bit, 4(16 bit), 6 x 16 bit |
| ADC Channels | 6 |
| ADC Resolution | 10 bit, 12 bit |
| Timer Resolution | 16bit |
| Number of CAN Channels | 1 |
| Minimum Operating Temperature | -40 °C |
| Timers | 5 x 16 bit |
| Number of SPI Channels | 2 |
| Dimensions | 1.4 x 0.295 x 0.15in |
| Length | 35.56mm |
| PWM Resolution | 16bit |
| Height | 3.81mm |
| Number of Timers | 5 |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Number of PWM Units | 6 |
| ADCs | 6 x 10/12 bit |
| Width | 0.295in |
| Number of I2C Channels | 1 |
| PWM Channels | 2, 6 |
