![Microchip DSPIC33FJ64MC802-I/SP 1785357](http://nguyenxuong.com/cdn/shop/products/R4670962-06_03bf2ff7-4031-438e-a876-ea2105a202ca_384x201.jpg?v=1594092797)

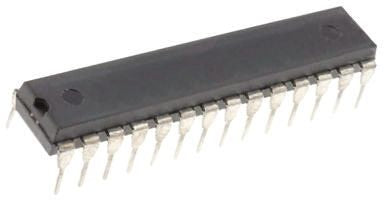

DSPIC33FJ64MC802-I/SP Microchip, 16bit DSP 40MIPS 64 kB Flash 28-Pin SPDIP [DSPIC33FJ64MC802-I/SP]; 178-5357
by Microchip
0₫
Mã kho: 1785357
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Frequency | 40MIPS |
Data Bus Width | 16bit |
RAM Size | 16 kB |
Instruction Set Architecture | RISC |
Program Memory Size | 64 kB |
Program Memory Type | Flash |
Mounting Type | Through Hole |
Package Type | SPDIP |
Pin Count | 28 |
Typical Operating Supply Voltage | 3 → 3.6 V |
Number of UART Channels | 2 |
Maximum Operating Temperature | +85 °C |
Timer Resolution | 16bit |
Pulse Width Modulation | 2 x 16 bit, 4(16 bit), 6 x 16 bit |
ADC Resolution | 10 bit, 12 bit |
Height | 3.81mm |
Length | 35.56mm |
Dimensions | 1.4 x 0.295 x 0.15in |
Number of SPI Channels | 2 |
ADC Channels | 6 |
PWM Channels | 2, 6 |
Number of I2C Channels | 1 |
Timers | 5 x 16 bit |
Number of CAN Channels | 1 |
Number of Timers | 5 |
PWM Resolution | 16bit |
Number of ADC Units | 1 |
Number of PWM Units | 6 |
ADCs | 6 x 10/12 bit |
Width | 0.295in |
Minimum Operating Temperature | -40 °C |
