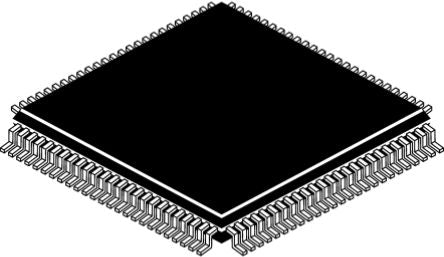

ADSP-2185MKSTZ-300 Analog Devices ADSP-21xx, 16bit DSP 75MHz RAM 100-Pin LQFP 80 kB, [ADSP-2185MKSTZ-300]; 158-0582
0₫
Mã kho: 1580582
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency | 75MHz |
| Series | ADSP-21xx |
| Device Million Instructions per Second | 75MIPS |
| Data Bus Width | 16bit |
| RAM Size | 80 kB |
| Instruction Set Architecture | Enhanced Harvard |
| Program Memory Type | RAM |
| Numeric and Arithmetic Format | Fixed Point |
| Mounting Type | Surface Mount |
| Package Type | LQFP |
| Pin Count | 100 |
| Typical Operating Supply Voltage | 2.5 V, 3.3 V |
| Length | 14mm |
| Width | 14mm |
| Minimum Operating Temperature | 0 °C |
| Dimensions | 14 x 14 x 1.4mm |
| Height | 1.4mm |
| Maximum Operating Temperature | +70 °C |
