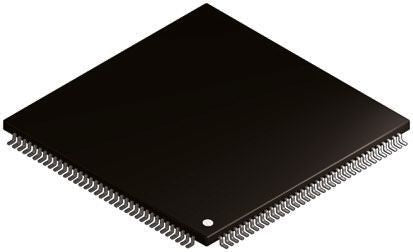

ADSP-21261SKSTZ150 Analog Devices SHARC, 32 bit, 40 bit DSP 150MHz 3 Mbit ROM 144-Pin LQFP [ADSP-21261SKSTZ150]; 159-7586
0₫
Mã kho: 1597586
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Frequency | 150MHz |
Series | SHARC |
Data Bus Width | 32 bit, 40 bit |
RAM Size | 1 (SRAM) Mbit |
Instruction Set Architecture | Super Harvard |
Program Memory Size | 3 Mbit |
Program Memory Type | ROM |
Numeric and Arithmetic Format | Fixed Point, Floating Point |
Mounting Type | Surface Mount |
Package Type | LQFP |
Pin Count | 144 |
Typical Operating Supply Voltage | 1.14 → 1.26 V, 3.13 → 3.47 V |
Number of UART Channels | 4 |
Number of Timers | 3 |
Number of PWM Units | 3 |
Height | 1.45mm |
Maximum Operating Temperature | +70 °C |
Pulse Width Modulation | 3 |
Length | 20.2mm |
Number of SPI Channels | 1 |
Dimensions | 20.2 x 20.2 x 1.45mm |
Width | 20.2mm |
Minimum Operating Temperature | 0 °C |
