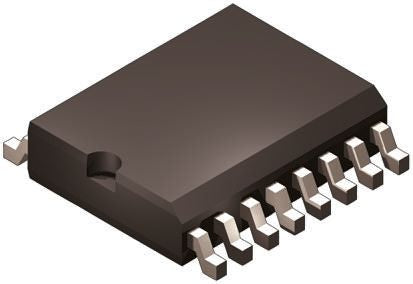

AD7376ARWZ100, Digital Potentiometer 100kΩ 128-Position Serial-3 Wire, Serial-SPI 16-Pin SOIC W [AD7376ARWZ100]; 709-6364
0₫
Mã kho: 7096364
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Control Interface | Serial-3 Wire, Serial-SPI |
Resistance Value | 100kΩ |
Number of Positions | 128 |
Memory Type | Volatile |
Number of Pots per Package | 1 |
Mounting Type | Surface Mount |
Package Type | SOIC W |
Pin Count | 16 |
Power Supply Type | Dual, Single |
Typical Single Supply Voltage | 30 V |
Typical Dual Supply Voltage | ±15V |
Dimensions | 10.5 x 7.6 x 2.35mm |
Height | 2.35mm |
Length | 10.5mm |
Width | 7.6mm |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
