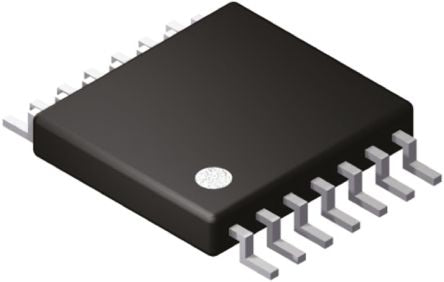

AD5222BRUZ10, Digital Potentiometer 10kΩ 128-Position 2-Channel Increment/Decrement 14-Pin TSSOP [AD5222BRUZ10]; 145-6973
0₫
Mã kho: 1456973
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Control Interface | Increment/Decrement |
| Resistance Value | 10kΩ |
| Number of Positions | 128 |
| Memory Type | Volatile |
| Number of Pots per Package | 2 |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 14 |
| Power Supply Type | Dual, Single |
| Typical Single Supply Voltage | 3 V, 5 V |
| Typical Dual Supply Voltage | ±2.5V |
| Dimensions | 5 x 4.4 x 1mm |
| Height | 1mm |
| Maximum Operating Temperature | +85 °C |
| Length | 5mm |
| Width | 4.4mm |
| Minimum Operating Temperature | -40 °C |
