![Analog Devices AD5204BRZ10 7094721](http://nguyenxuong.com/cdn/shop/products/R7094721-01_444x355.jpg?v=1594057474)

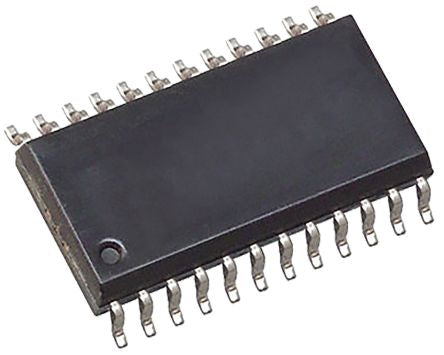

AD5204BRZ10, Digital Potentiometer 10kΩ 256-Position 4-Channel Serial-3 Wire, Serial-SPI 24-Pin SOIC W [AD5204BRZ10]; 709-4721
0₫
Mã kho: 7094721
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Control Interface | Serial-3 Wire, Serial-SPI |
Resistance Value | 10kΩ |
Number of Positions | 256 |
Memory Type | Volatile |
Number of Pots per Package | 4 |
Mounting Type | Surface Mount |
Package Type | SOIC W |
Pin Count | 24 |
Power Supply Type | Dual, Single |
Typical Single Supply Voltage | 3 V, 5 V |
Typical Dual Supply Voltage | ±2.5V |
Dimensions | 15.6 x 7.6 x 2.35mm |
Height | 2.35mm |
Width | 7.6mm |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +85 °C |
Length | 15.6mm |
