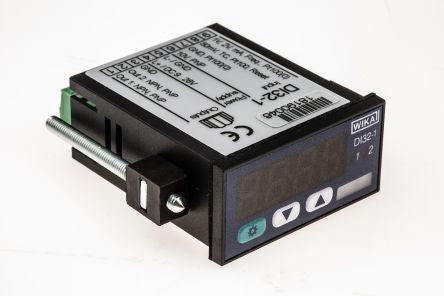

WIKA 14110042 , LED Digital Panel Multi-Function Meter, 22.2mm x 45mm [14110042]; 124-4456
by WIKA
0₫
Mã kho: 1244456
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Properties Measured | Counter, Current, Frequency, Humidity, Speed, Temperature, Thermocouples, Voltage |
| Display Type | LED |
| Cutout Height | 22.2mm |
| Cutout Width | 45mm |
| Number of Digits | 4 |
| Depth | 3mm |
| Digit Height | 10 mm |
| Minimum Temperature | -20°C |
| Maximum Temperature | +50°C |
| Series | DI32-1 |
| Minimum Measurement | -270 (Thermocouple (Type E)) °C, -270 (Thermocouple (Type K)) °C, -270 (Thermocouple (Type N)) °C, -270 (Thermocouple (Type T)) °C, -200 (PT100 (3-Wire)) °C, -200 (PT1000 (2-Wire)) °C, -200 (Thermocouple (Type L)) °C, -170 (Thermocouple (Type J)) °C, -50 (PT100 (3-Wire)) °C, -50 (Thermocouple (Type R)) °C, -50 (Thermocouple (Type S)) °C, 0 (Counter), 0 (Current mA @ 125 Ω), 0 (Frequency NPN) kHz, 0 (Frequency PNP) kHz, 0 (Frequency) kHz, 0 (Humidity) %RH, 0 (Speed) rpm, 0 (Voltage) V, 4 (Current mA @ 125 Ω), +80 (Thermocouple (Type B)) °C |
| Approvals | EMC 2004/108/EC, EN 61326, IEC 60529/EN 60529, UL 94 V-0 |
| Meter Type | Electrical |
| Measurement Range | 0 → 1 (Voltage V @ >10 kΩ), 0 → 10 (Voltage V @ >100 kΩ), 0 → 2 (Voltage V @ >10 kΩ), 0 → 50 (Voltage mV @ >10 kΩ) |
