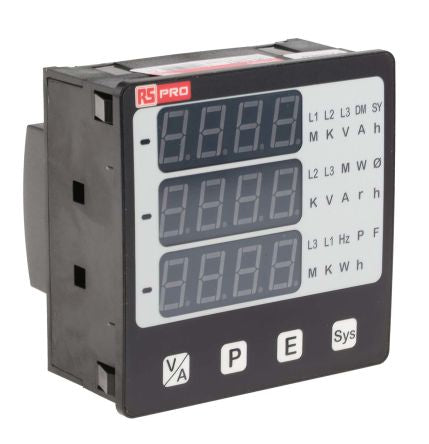

RS PRO LED Digital Panel Multi-Function Meter, 92mm x 92mm; 136-5383
by RS PRO
0₫
Mã kho: 1365383
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Properties Measured | AC Current, AC Voltage, Active, Apparent Power, Frequency, Import Export Energy, Reactive |
Display Type | LED |
Cutout Height | 92mm |
Cutout Width | 92mm |
Number of Digits | 4 |
Depth | 55 (Without Option)mm |
Minimum Temperature | -20°C |
Maximum Temperature | +70°C |
Approvals | IEC 60529, IEC 61010-1-2001, IEC 61326-1:2005 |
Measurement Range | 0.5 (Lag Power Factor), 0.5 (Lead Power Factor), 1 (Normal Power Factor), 1 → 5 (Current) A, 45 → 65 (Frequency) Hz, 290 (Phase → Neutral) V ac, 500 (Line → Line) V ac |
Series | Alpha 20 |
Meter Type | Digital |
