![Lumel N24-S210000E0 1718475](http://nguyenxuong.com/cdn/shop/products/Y1718475-01_444x264.jpg?v=1594060455)

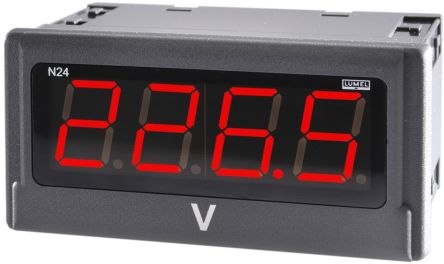

Lumel N24-S210000E0 , LED Digital Panel Multi-Function Meter, 92mm x 45mm [N24-S210000E0]; 171-8475
by Lumel
0₫
Mã kho: 1718475
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Properties Measured | Standard Current, Standard Voltage |
Display Type | LED |
Cutout Height | 92mm |
Cutout Width | 45mm |
Number of Digits | 4 |
Depth | 64mm |
Digit Height | 20 mm |
Minimum Temperature | -10°C |
Maximum Temperature | +55°C |
Approvals | CE Certified |
Series | N24 |
Minimum Measurement | -66 mV, -11 mV, -11 V, -1 mA, -0.5 V, 3.6 mA |
Meter Type | Digital |
Measurement Range | -66 → 66 mV, -11 → 11 V, -11 → 66 mV, -1 → 22 mA, -0.5 → 11 V, 3.6 → 26 mA |
