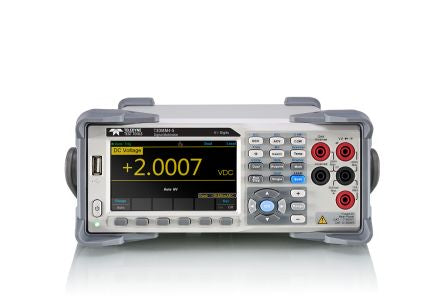

Teledyne LeCroy, 4.5 Digit, 150 Meas/Sec [T3DMM4-5]; 195-4314
0₫
Mã kho: 1954314
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Digital |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity Test, DC Current, DC Voltage, Diode Test, Frequency, Period Measurement, Resistance, Temperature, True RMS |
| True RMS | Yes |
| Maximum Frequency | 500kHz |
| Display Type | TFT LCD |
| Model Number p | T3DMM |
| AC Current Measurement Resolution | 0.001mA ac |
| DC Current Measurement Resolution | 0.01µA dc |
| AC Voltage Measurement Resolution | 0.01mV ac |
| DC Voltage Measurement Resolution | 0.01mV dc |
| Capacitance Measurement Resolution | 0.001nF |
| Height | 107.21mm |
| Maximum Operating Temperature | +50°C |
| Best AC Current Accuracy | ±2.5 % of Reading + 25 Count |
| Width | 260.27mm |
| Best DC Voltage Accuracy | ±0.02 % of Reading + 6 Count |
| Dimensions | 293 x 260.27 x 107.21mm |
| Safety Category Voltage | 600 V, 1000 V |
| Best DC Current Accuracy | ±0.25 % of Reading + 4 Count |
| Safety Category Level | CAT I, CAT II |
| Weight | 3.8kg |
| Length | 293mm |
| Best AC Voltage Accuracy | ±3 % of Reading + 40 Count |
| Minimum Operating Temperature | 0°C |
