Digital Multimeters > Digital Multimeters

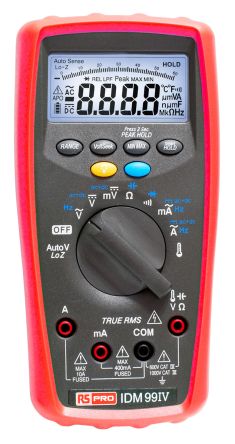

RS PRO IDM99IV Handheld Digital Multimeter, 10A ac 1000V ac 10A dc 1000V dc; 873-2367

by RS PRO
0₫
(Giá chưa VAT).
Mã kho: 8732367

Mã nhà sản xuất: Handheld

Đơn vị tính: Each

Liên hệ để có giá tốt (Vietnam: 0898.332.898,  E-mail: SKF@nguyenxuong.com)

THÔNG SỐ KỸ THUẬT
Multimeter Type Handheld
Absolute Maximum AC Current Measurement 10A ac
Absolute Maximum DC Current Measurement 10A dc
Absolute Maximum AC Voltage Measurement 1000V ac
Absolute Maximum DC Voltage Measurement 1000V dc
Absolute Maximum Resistance Measurement 40MΩ
Absolute Maximum Capacitance Measurement 10mF
Absolute Maximum Temperature Measurement +400°C
Functions Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance, Temperature
True RMS Yes
Maximum Frequency 100kHz
Display Type LCD
Model Number p IDM99IV
DC Current Measurement Resolution 0.01mA dc
AC Current Measurement Resolution 0.01mA ac
Resistance Measurement Resolution 100mΩ
AC Voltage Measurement Resolution 0.1mV ac
DC Voltage Measurement Resolution 1V dc
Capacitance Measurement Resolution 0.01mF
Temperature Measurement Resolution 0.1°C
Best Resistance Measurement Accuracy ±0.8 %
Battery Type 1604A
Safety Category Voltage 600 V, 1000 V
Best DC Current Accuracy ±0.8% + 3 Digits
Safety Category Level CAT III, CAT IV
Weight 460g
Battery Life 200 h
Height 48mm
Minimum Operating Temperature -10°C
Best Capacitance Measurement Accuracy ±1.2 %
Best AC Voltage Accuracy ±0.8 %
Width 94mm
Best AC Current Accuracy ±1.2% + 3 Digits
Maximum Operating Temperature +50°C
Best Temperature Measurement Accuracy ±1 %
Length 190mm
Best DC Voltage Accuracy ±0.08 %
Dimensions 190 x 94 x 48mm
