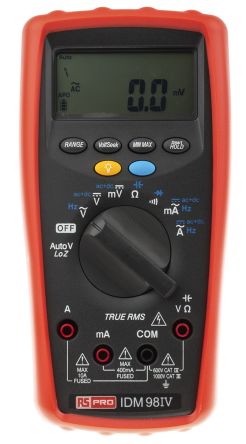

RS PRO IDM98IV Handheld Digital Multimeter, 10A ac 1000V ac 10A dc 1000V dc; 873-2360
by RS PRO
0₫
Mã kho: 8732360
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Handheld |
| Absolute Maximum DC Current Measurement | 10A dc |
| Absolute Maximum AC Current Measurement | 10A ac |
| Absolute Maximum AC Voltage Measurement | 1000V ac |
| Absolute Maximum Resistance Measurement | 40MΩ |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum Capacitance Measurement | 10mF |
| Functions Measured | AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance |
| True RMS | Yes |
| Maximum Frequency | 100kHz |
| Display Type | LCD |
| Model Number p | IDM98IV |
| DC Current Measurement Resolution | 0.01mA dc |
| AC Current Measurement Resolution | 0.01mA ac |
| Resistance Measurement Resolution | 100mΩ |
| DC Voltage Measurement Resolution | 1V dc |
| AC Voltage Measurement Resolution | 0.1mV ac |
| Capacitance Measurement Resolution | 0.01mF |
| Safety Category Level | CAT III, CAT IV |
| Weight | 460g |
| Battery Life | 200 h |
| Height | 48mm |
| Minimum Operating Temperature | -10°C |
| Best AC Voltage Accuracy | ±1 % |
| Best Capacitance Measurement Accuracy | ±1.2 % |
| Best Resistance Measurement Accuracy | ±0.8 % |
| Battery Type | 1604A |
| Safety Category Voltage | 600 V, 1000 V |
| Best DC Current Accuracy | ±1% + 3 Digits |
| Maximum Operating Temperature | +50°C |
| Best DC Voltage Accuracy | ±0.09 % |
| Dimensions | 190 x 94 x 48mm |
| Width | 94mm |
| Best AC Current Accuracy | ±1.5% + 3 Digits |
| Length | 190mm |
