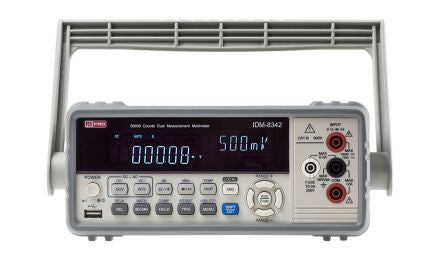

RS PRO IDM8342 Bench Digital Multimeter, 10A ac 750V ac 10A dc 1000V dc; 123-3536
by RS PRO
0₫
Mã kho: 1233536
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Bench |
| Absolute Maximum DC Current Measurement | 10A dc |
| Absolute Maximum AC Current Measurement | 10A ac |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum AC Voltage Measurement | 750V ac |
| Absolute Maximum Resistance Measurement | 50MΩ |
| Absolute Maximum Temperature Measurement | +300°C |
| Absolute Maximum Capacitance Measurement | 50µF |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Resistance, Temperature |
| True RMS | Yes |
| Maximum Frequency | 1MHz |
| Display Type | LCD |
| Model Number p | IDM8342 |
| DC Current Measurement Resolution | 10nA dc |
| AC Current Measurement Resolution | 10nA ac |
| Resistance Measurement Resolution | 10mΩ |
| DC Voltage Measurement Resolution | 10µV dc |
| AC Voltage Measurement Resolution | 10µV ac |
| Capacitance Measurement Resolution | 0.001nF |
| Temperature Measurement Resolution | 0.1°C |
| Safety Category Voltage | 600V |
| Best Resistance Measurement Accuracy | ±0.1% + 3 Digits |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | 0°C |
| Best DC Current Accuracy | ±0.05% + 4 Digits |
| Height | 107mm |
| Best Capacitance Measurement Accuracy | ±2% + 4 Digits |
| Best AC Voltage Accuracy | 0.0035 |
| Weight | 2.9kg |
| Safety Category Level | CAT II, CAT III, CAT IV |
| Width | 302mm |
| Length | 265mm |
| Best AC Current Accuracy | ±0.5% + 20 Digits |
| Dimensions | 265 x 302 x 107mm |
| Best Temperature Measurement Accuracy | 2 °C |
| Best DC Voltage Accuracy | ±0.02% + 4 Digits |
