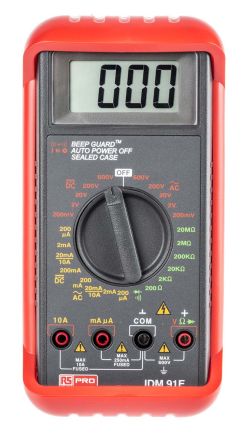

RS PRO IDM91E Handheld Digital Multimeter, 10A ac 600V ac 10A dc 600V dc; 123-3244
by RS PRO
0₫
Mã kho: 1233244
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Handheld |
| Absolute Maximum DC Current Measurement | 10A dc |
| Absolute Maximum AC Current Measurement | 10A ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum Resistance Measurement | 20MΩ |
| Functions Measured | AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode Test, Resistance |
| True RMS | No |
| Display Type | LCD |
| Model Number p | IDM91E |
| DC Current Measurement Resolution | 0.1µA dc |
| AC Current Measurement Resolution | 0.1µA ac |
| AC Voltage Measurement Resolution | 0.1mV ac |
| DC Voltage Measurement Resolution | 0.1mV dc |
| Resistance Measurement Resolution | 100mΩ |
| Dimensions | 95 x 50 x 192mm |
| Best AC Voltage Accuracy | ±1.25% + 4 Digits |
| Minimum Operating Temperature | 0°C |
| Height | 192mm |
| Best DC Voltage Accuracy | ±0.5% + 1 Digits |
| Safety Category Voltage | 600V |
| Battery Type | IEC 6F22, NEDA 1604, 9V |
| Battery Life | 300 h |
| Best DC Current Accuracy | ±1% + 1 Digits |
| Weight | 550 (With Holster)g |
| Maximum Operating Temperature | +50°C |
| Safety Category Level | CAT III |
| Best Resistance Measurement Accuracy | ±0.75% + 1 Digits |
| Width | 50mm |
| Length | 95mm |
| Best AC Current Accuracy | ±2.5% + 3 Digits |
