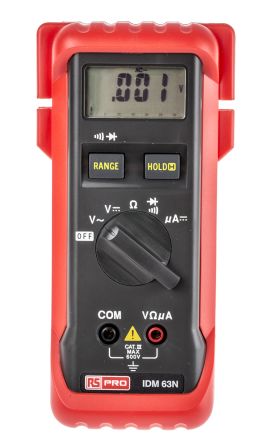

RS PRO IDM63N Handheld Digital Multimeter 600V ac 3mA dc 600V dc; 123-3240
by RS PRO
0₫
Mã kho: 1233240
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Handheld |
| Absolute Maximum DC Current Measurement | 3mA dc |
| Absolute Maximum Resistance Measurement | 30MΩ |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Functions Measured | AC Voltage, Continuity, DC Current, DC Voltage, Diode Test, Resistance |
| True RMS | No |
| Display Type | LCD |
| Model Number p | IDM63N |
| DC Current Measurement Resolution | 0.1µA dc |
| AC Voltage Measurement Resolution | 1mV ac |
| Resistance Measurement Resolution | 100mΩ |
| DC Voltage Measurement Resolution | 0.1mV dc |
| Battery Type | AAA 1.5 V, AM4, IEC LR03 |
| Safety Category Voltage | 600V |
| Dimensions | 80 x 36 x 165mm |
| Best DC Voltage Accuracy | ±0.5% + 2 Digits |
| Best AC Voltage Accuracy | ±1.5% + 5 Digits |
| Best Resistance Measurement Accuracy | ±1% + 4 Digits |
| Maximum Operating Temperature | +50°C |
| Width | 36mm |
| Weight | 310g |
| Safety Category Level | CAT III |
| Minimum Operating Temperature | 0°C |
| Best DC Current Accuracy | ±1% + 2 Digits |
| Height | 165mm |
| Length | 80mm |
| Battery Life | 800 h |
