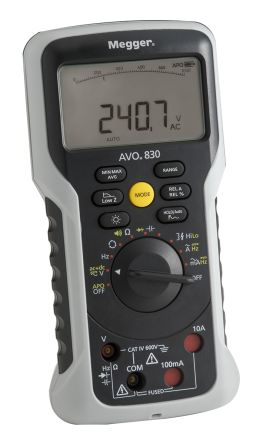

Megger AVO830 Handheld Digital Multimeter, 10A ac 600V ac 10A dc 600V dc [1007-494]; 136-7898
by Megger
0₫
Mã kho: 1367898
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Handheld |
| Absolute Maximum DC Current Measurement | 10A dc |
| Absolute Maximum AC Current Measurement | 10A ac |
| Absolute Maximum Resistance Measurement | 50MΩ |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum Capacitance Measurement | 20mF |
| Absolute Maximum Temperature Measurement | +300 °C, +572 °F |
| Functions Measured | AC Current, AC Voltage, Capacitance, Conductance, DC Current, DC Voltage, Diode, Frequency, Resistance, RMS, Temperature |
| True RMS | Yes |
| Maximum Frequency | 60Hz |
| Display Type | LCD |
| Model Number p | AVO830 |
| DC Current Measurement Resolution | 0.01mA dc |
| AC Current Measurement Resolution | 0.01mA ac |
| DC Voltage Measurement Resolution | 0.1mV dc |
| AC Voltage Measurement Resolution | 0.1mV ac |
| Resistance Measurement Resolution | 10mΩ |
| Temperature Measurement Resolution | 0.1 °C, 0.1 °F |
| Capacitance Measurement Resolution | 1nF |
| Safety Category Level | CAT IV |
| Weight | 420g |
| Battery Life | 150 h |
| Height | 195mm |
| Best Resistance Measurement Accuracy | ±1 % |
| Minimum Operating Temperature | -10°C |
| Best Capacitance Measurement Accuracy | ±2 % |
| Best AC Voltage Accuracy | ±1 % |
| Best Temperature Measurement Accuracy | ±1 % |
| Best DC Current Accuracy | ±1 % |
| Best DC Voltage Accuracy | ±0.1 % |
| Dimensions | 95 x 45 x 195mm |
| Battery Type | AA Alkaline |
| Safety Category Voltage | 600V |
| Length | 95mm |
| Best AC Current Accuracy | ±1.5 % |
| Width | 45mm |
| Maximum Operating Temperature | +50°C |
