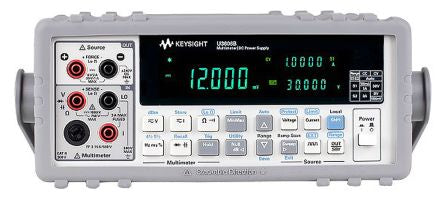

Keysight Technologies U3606B Bench Digital Multimeter, 3A ac 750V ac 3A dc 1000V dc [U3606B]; 877-7969
0₫
Mã kho: 8777969
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Bench |
| Absolute Maximum DC Current Measurement | 3A dc |
| Absolute Maximum AC Current Measurement | 3A ac |
| Absolute Maximum Resistance Measurement | 100MΩ |
| Absolute Maximum AC Voltage Measurement | 750V ac |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum Capacitance Measurement | 10mF |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance |
| True RMS | Yes |
| Maximum Frequency | 100kHz |
| Display Type | VFD |
| Model Number p | U3606B |
| DC Current Measurement Resolution | 0.1µA dc |
| DC Voltage Measurement Resolution | 0.1µV dc |
| Capacitance Measurement Resolution | 0.01nF |
| Safety Category Voltage | 300 V, 750 V, 1000 V |
| Height | 105mm |
| Minimum Operating Temperature | 0°C |
| Weight | 3.5 (Without Rubber Bumpers) kg, 3.8 (With Rubber Bumpers) kg |
| Safety Category Level | CAT I, CAT II |
| Best DC Current Accuracy | ±0.15% + 0.007 |
| Best Resistance Measurement Accuracy | ±0.25% + 0.05 |
| Maximum Operating Temperature | +55°C |
| Best AC Voltage Accuracy | ±0.2% + 0.1 |
| Best DC Voltage Accuracy | ±0.025 % |
| Dimensions | 334 x 226 x 105mm |
| Length | 334mm |
| Width | 226mm |
| Best AC Current Accuracy | ±0.5% + 0.1 |
| Best Capacitance Measurement Accuracy | ±1% + 0.5 |
