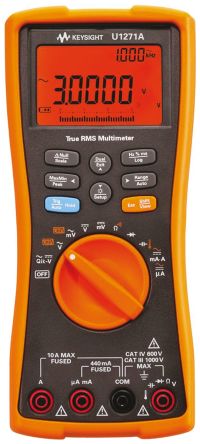

Keysight Technologies U1271A Handheld Digital Multimeter, 10A ac 1000V ac 10A dc 1000V dc [U1271A]; 714-8067
0₫
Mã kho: 7148067
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Handheld |
| Absolute Maximum AC Current Measurement | 10A ac |
| Absolute Maximum DC Current Measurement | 10A dc |
| Absolute Maximum AC Voltage Measurement | 1000V ac |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum Resistance Measurement | 100MΩ |
| Absolute Maximum Temperature Measurement | +1372°C |
| Absolute Maximum Capacitance Measurement | 10mF |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature |
| True RMS | Yes |
| Maximum Frequency | 20kHz |
| Display Type | LCD |
| Model Number p | U1271A |
| DC Current Measurement Resolution | 0.01µA dc |
| AC Current Measurement Resolution | 0.01µA ac |
| Resistance Measurement Resolution | 1mΩ |
| AC Voltage Measurement Resolution | 0.01mV ac |
| Temperature Measurement Resolution | 0.1°C |
| Capacitance Measurement Resolution | 1pF |
| Weight | 518g |
| Battery Life | 300 h |
| Height | 92mm |
| Maximum Operating Temperature | +55°C |
| Best DC Voltage Accuracy | ±0.05% + 2 Digits |
| Length | 59mm |
| Best Resistance Measurement Accuracy | ±0.2% + 5 Digits |
| Minimum Operating Temperature | -20°C |
| Safety Category Voltage | 600 V, 1000 V |
| Battery Type | AAA x 4 |
| Best Capacitance Measurement Accuracy | ±1% + 2 Digits |
| Best AC Voltage Accuracy | ±0.7% + 20 Digits |
| Best Temperature Measurement Accuracy | ±1% + 1 °C |
| Dimensions | 59 x 207 x 92mm |
| Width | 207mm |
| Best AC Current Accuracy | ±0.9% + 25 Digits |
| Best DC Current Accuracy | ±0.2% + 5 Digits |
| Safety Category Level | CAT III, CAT IV |
