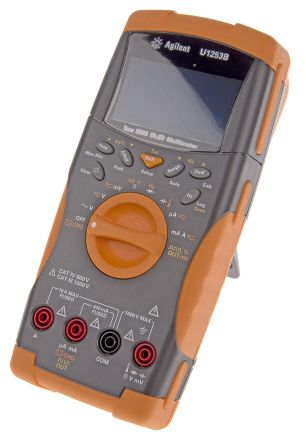

Keysight Technologies U1253B Handheld Digital Multimeter, 10A ac 1000V ac 10A dc 1000V dc [U1253B]; 699-7367
0₫
Mã kho: 6997367
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Handheld |
| Absolute Maximum AC Current Measurement | 10A ac |
| Absolute Maximum DC Current Measurement | 10A dc |
| Absolute Maximum Resistance Measurement | 500MΩ |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum AC Voltage Measurement | 1000V ac |
| Absolute Maximum Temperature Measurement | +1372°C |
| Absolute Maximum Capacitance Measurement | 100mF |
| Functions Measured | Capacitance, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature |
| True RMS | Yes |
| Maximum Frequency | 100kHz |
| Display Type | OLED |
| Model Number p | U1253B |
| AC Current Measurement Resolution | 0.01µA ac |
| DC Current Measurement Resolution | 0.01µA dc |
| DC Voltage Measurement Resolution | 0.001mV dc |
| Resistance Measurement Resolution | 10mΩ |
| AC Voltage Measurement Resolution | 0.001mV ac |
| Temperature Measurement Resolution | 0.1°C |
| Capacitance Measurement Resolution | 1pF |
| Best DC Voltage Accuracy | ±0.03% + 5 Digits |
| Battery Type | Rechargeable NiMH (7.2 V), Rechargeable NiMH (8.4 V), 9V |
| Best Resistance Measurement Accuracy | ±3% + 10 Digits |
| Length | 59mm |
| Safety Category Voltage | 600 V, 1000 V |
| Best DC Current Accuracy | ±0.3% + 5 Digits |
| Safety Category Level | CAT III, CAT IV |
| Weight | 527g |
| Battery Life | 8 h |
| Height | 203.5mm |
| Maximum Operating Temperature | +55°C |
| Dimensions | 59 x 94.4 x 203.5mm |
| Best Temperature Measurement Accuracy | ±1% + 1 °C |
| Best AC Voltage Accuracy | ±0.4% + 40 Digits |
| Best Capacitance Measurement Accuracy | ±3% + 10 Digits |
| Minimum Operating Temperature | -20°C |
| Best AC Current Accuracy | ±3% + 60 Digits |
| Width | 94.4mm |
