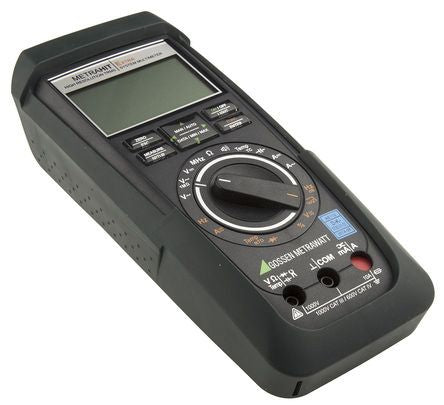

Gossen Metrawatt METRAHIT PM XTRA Handheld Digital Multimeter, 10A ac 1000V ac 10A dc 1000V dc [M250A]; 487-870
0₫
Mã kho: 487870
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Handheld |
| Absolute Maximum AC Current Measurement | 10A ac |
| Absolute Maximum DC Current Measurement | 10A dc |
| Absolute Maximum Resistance Measurement | 60MΩ |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum AC Voltage Measurement | 1000V ac |
| Absolute Maximum Temperature Measurement | +1372°C |
| Absolute Maximum Capacitance Measurement | 600µF |
| Functions Measured | AC Current, AC Voltage, Battery Test, Capacitance, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature |
| True RMS | Yes |
| Maximum Frequency | 100kHz |
| Display Type | LCD |
| Model Number p | METRAHIT PM XTRA |
| DC Current Measurement Resolution | 10nA |
| AC Current Measurement Resolution | 10nA |
| DC Voltage Measurement Resolution | 10µV dc |
| Resistance Measurement Resolution | 10mΩ |
| AC Voltage Measurement Resolution | 10µV ac |
| Temperature Measurement Resolution | 0.1°C |
| Capacitance Measurement Resolution | 10pF |
| Best Resistance Measurement Accuracy | ±5% + 10 Digits |
| Maximum Operating Temperature | +40°C |
| Best AC Voltage Accuracy | ±0.05% + 5 Digits |
| Best Capacitance Measurement Accuracy | ±5% + 6 Digits |
| Minimum Operating Temperature | 0°C |
| Battery Life | 200 h |
| Weight | 350g |
| Safety Category Level | CAT III, CAT IV |
| Height | 45mm |
| Best DC Current Accuracy | ±0.1% + 5 Digits |
| Safety Category Voltage | 600 V, 1000 V |
| Battery Type | AA |
| Best Temperature Measurement Accuracy | ±1% + 5 Digits |
| Dimensions | 200 x 87 x 45mm |
| Length | 200mm |
| Width | 87mm |
| Best AC Current Accuracy | ±0.1% + 5 Digits |
| Best DC Voltage Accuracy | ±0.05% + 5 Digits |
