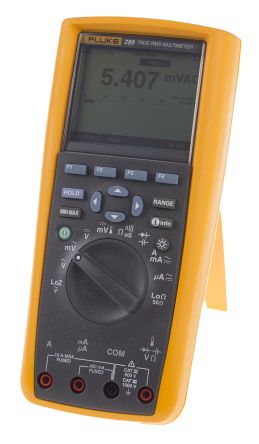

Fluke 289 Handheld Digital Multimeter, 10A ac 1000V ac 10A dc 1000V dc [FLUKE 289/EUR]; 156-730
by Fluke
0₫
Mã kho: 156730
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Multimeter Type | Handheld |
Absolute Maximum DC Current Measurement | 10A dc |
Absolute Maximum AC Current Measurement | 10A ac |
Absolute Maximum AC Voltage Measurement | 1000V ac |
Absolute Maximum DC Voltage Measurement | 1000V dc |
Absolute Maximum Resistance Measurement | 500MΩ |
Absolute Maximum Capacitance Measurement | 100mF |
Absolute Maximum Temperature Measurement | +1350°C |
Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Resistance, Temperature |
True RMS | Yes |
Maximum Frequency | 100kHz |
Display Type | VGA |
Model Number p | 289 |
DC Current Measurement Resolution | 0.01µA dc |
AC Current Measurement Resolution | 0.01µA ac |
AC Voltage Measurement Resolution | 1µV ac |
DC Voltage Measurement Resolution | 1µV dc |
Resistance Measurement Resolution | 10mΩ |
Capacitance Measurement Resolution | 1pF |
Temperature Measurement Resolution | 0.1°C |
Best Temperature Measurement Accuracy | ±1% + 1 °C |
Best AC Current Accuracy | ±0.7% + 5 Digits |
Width | 102mm |
Maximum Operating Temperature | +55°C |
Dimensions | 60 x 102 x 222mm |
Best AC Voltage Accuracy | ±0.4% + 40 Digits |
Best DC Current Accuracy | ±0.15% + 2 Digits |
Weight | 870.9g |
Length | 60mm |
Battery Life | 50 h, 180 (Logging Mode) h |
Height | 222mm |
Best DC Voltage Accuracy | ±0.025% + 5 Digits |
Safety Category Level | CAT III, CAT IV |
Best Resistance Measurement Accuracy | ±0.05% + 2 Digits |
Safety Category Voltage | 600 V, 1000 V |
Battery Type | AA x 6 |
Best Capacitance Measurement Accuracy | ±1% + 5 Digits |
Minimum Operating Temperature | -20°C |
