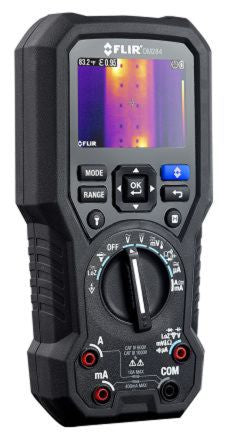

FLIR DM284 Handheld Thermal Imaging Multimeter, 10A ac 1000V ac 10A dc 1000V dc [DM284]; 124-4679
by FLIR
0₫
Mã kho: 1244679
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Multimeter Type | Handheld |
Absolute Maximum DC Current Measurement | 10A dc |
Absolute Maximum AC Current Measurement | 10A ac |
Absolute Maximum DC Voltage Measurement | 1000V dc |
Absolute Maximum AC Voltage Measurement | 1000V ac |
Absolute Maximum Resistance Measurement | 50MΩ |
Absolute Maximum Temperature Measurement | +400 °C, +752 °F |
Absolute Maximum Capacitance Measurement | 10mF |
Functions Measured | Capacitance, Continuity, Current, Flex Clamp, Frequency, Resistance, Thermal Imaging, Thermocouple, VFD, Voltage |
True RMS | Yes |
Maximum Frequency | 99.99kHz |
Display Type | LCD |
Model Number p | DM284 |
Best DC Voltage Accuracy | 0.0009 |
Best Temperature Measurement Accuracy | ±1 % |
Best AC Voltage Accuracy | 0.0009 |
Best Capacitance Measurement Accuracy | 0.019 |
Minimum Operating Temperature | -10°C |
Height | 200mm |
Battery Life | 3 (Alkaline) h, 12 (Rechargeable) h |
Maximum Operating Temperature | +150°C |
Length | 49mm |
Best AC Current Accuracy | ±1 % |
Dimensions | 49 x 95 x 200mm |
Width | 95mm |
Weight | 537g |
Best DC Current Accuracy | ±1 % |
Safety Category Voltage | 600 V, 1000 V |
Safety Category Level | CAT III, CAT IV |
Battery Type | AAA |
Best Resistance Measurement Accuracy | 0.009 |
