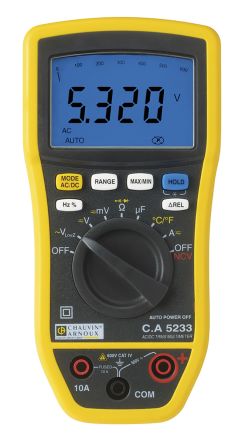

Chauvin Arnoux C.A 5233 Handheld Digital Multimeter, 10A ac 600V ac 10A dc 600V dc [P01196733]; 740-6468
0₫
Mã kho: 7406468
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Handheld |
| Absolute Maximum DC Current Measurement | 10A dc |
| Absolute Maximum AC Current Measurement | 10A ac |
| Absolute Maximum Resistance Measurement | 60MΩ |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum Temperature Measurement | +760°C |
| Absolute Maximum Capacitance Measurement | 1mF |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, NCV Non contact voltage, Resistance, Temperature |
| True RMS | Yes |
| Maximum Frequency | 3kHz |
| Display Type | Backlit Digital LCD |
| Model Number p | C.A 5233 |
| AC Current Measurement Resolution | 0.001A ac |
| DC Current Measurement Resolution | 0.001A dc |
| DC Voltage Measurement Resolution | 0.01mV dc |
| AC Voltage Measurement Resolution | 0.01mV ac |
| Resistance Measurement Resolution | 100mΩ |
| Temperature Measurement Resolution | 0.1°C |
| Capacitance Measurement Resolution | 0.01nF |
| Best Resistance Measurement Accuracy | ±0.3 % + 4 digits |
| Length | 55mm |
| Best DC Voltage Accuracy | ±0.2 % + 2 digits |
| Best AC Current Accuracy | ±2 % + 3 digits |
| Width | 75mm |
| Dimensions | 155 x 75 x 55mm |
| Best Temperature Measurement Accuracy | ±2 % + 5 °C |
| Best AC Voltage Accuracy | ±2 % + 3 digits |
| Best Capacitance Measurement Accuracy | ±3.5 % + 4 digits |
| Minimum Operating Temperature | 0°C |
| Height | 155mm |
| Battery Life | 100 h |
| Weight | 320g |
| Safety Category Level | CAT III, CAT IV |
| Best DC Current Accuracy | ±1.5 % + 3 digits |
| Safety Category Voltage | CAT III 600 V, CAT IV 600 V |
| Battery Type | IEC 6LR61, 9 V |
| Maximum Operating Temperature | +50°C |
