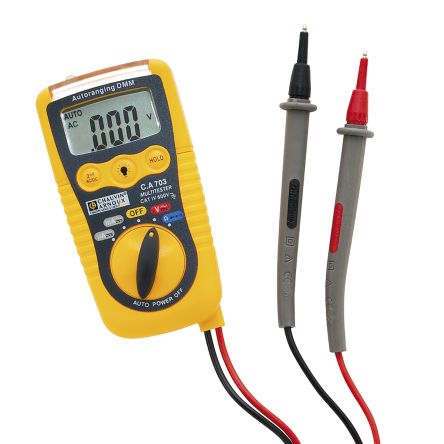

Chauvin Arnoux C.A 703 Handheld Digital Multimeter, 200mA ac 600V ac 200mA dc 600V dc [P01191740Z]; 799-9023
0₫
Mã kho: 7999023
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Multimeter Type | Handheld |
Absolute Maximum DC Current Measurement | 200mA dc |
Absolute Maximum AC Current Measurement | 200mA ac |
Absolute Maximum DC Voltage Measurement | 600V dc |
Absolute Maximum AC Voltage Measurement | 600V ac |
Absolute Maximum Resistance Measurement | 20MΩ |
Functions Measured | AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, NCV Non-contact voltage, Resistance |
Maximum Frequency | 400Hz |
Display Type | Digital, LCD |
Model Number p | CA 703 |
Dimensions | 104 x 55 x 32.5mm |
Length | 32.5mm |
Width | 55mm |
Best AC Current Accuracy | ±1 % + 8 Digits |
Best DC Voltage Accuracy | ±0.5 % + 3 digits |
Safety Category Level | CAT IV |
Weight | 145g |
Best AC Voltage Accuracy | ±1 % + 8 digits |
Minimum Operating Temperature | 0°C |
Height | 104mm |
Best Resistance Measurement Accuracy | ±0.8 % + 5 digits |
Maximum Operating Temperature | +40°C |
Safety Category Voltage | CAT III 1000 V, CAT IV 600 V |
Best DC Current Accuracy | ±2 % + 8 digits |
Battery Type | AAA 1.5 V, IEC LR03 |
