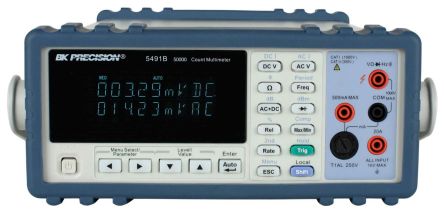

BK Precision 5491B Bench Digital Multimeter, 20A ac 750V ac 20A dc 1000V dc [BK5491B]; 878-2195
by BK Precision
0₫
Mã kho: 8782195
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Multimeter Type | Bench |
Absolute Maximum AC Current Measurement | 20A ac |
Absolute Maximum DC Current Measurement | 20A dc |
Absolute Maximum Resistance Measurement | 50MΩ |
Absolute Maximum DC Voltage Measurement | 1000V dc |
Absolute Maximum AC Voltage Measurement | 750V ac |
Functions Measured | AC Current, AC Voltage, DC Current, DC Voltage, Resistance |
True RMS | Yes |
Maximum Frequency | 1MHz |
Display Type | Digital |
Model Number p | 5491B |
DC Current Measurement Resolution | 1mA dc |
AC Current Measurement Resolution | 1mA ac |
Resistance Measurement Resolution | 1Ω |
AC Voltage Measurement Resolution | 1mV ac |
DC Voltage Measurement Resolution | 1mV dc |
Best AC Current Accuracy | ±2.5 % |
Width | 335mm |
Length | 225mm |
Dimensions | 225 x 335 x 100mm |
Best DC Voltage Accuracy | ±0.02 % |
Best DC Current Accuracy | ±0.25 % |
Safety Category Level | CAT I, CAT II |
Weight | 2.5kg |
Height | 100mm |
Best AC Voltage Accuracy | ±3 % |
Best Resistance Measurement Accuracy | ±0.1 % |
Safety Category Voltage | 300 V, 1000 V |
