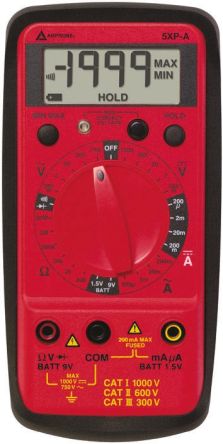

Amprobe 5XPA Handheld Digital Multimeter, 200mA ac 600V ac 200mA dc 600V dc [5XP-A]; 412-096
by Amprobe
0₫
Mã kho: 412096
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Handheld |
| Absolute Maximum DC Current Measurement | 200mA dc |
| Absolute Maximum AC Current Measurement | 200mA ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum Resistance Measurement | 20MΩ |
| Functions Measured | AC Current, AC Voltage, Battery Test, Continuity, DC Current, DC Voltage, Diode, Resistance |
| Maximum Frequency | 500Hz |
| Display Type | LCD |
| Model Number p | 5XPA |
| DC Current Measurement Resolution | 0.1µA dc |
| AC Current Measurement Resolution | 0.1µA ac |
| Resistance Measurement Resolution | 100mΩ |
| DC Voltage Measurement Resolution | 100µV dc |
| AC Voltage Measurement Resolution | 100µV ac |
| Safety Category Voltage | 300 V, 600 V |
| Weight | 210g |
| Height | 155mm |
| Minimum Operating Temperature | 0°C |
| Best Resistance Measurement Accuracy | ±2% + 5 Digits |
| Best AC Voltage Accuracy | ±1.5% + 5 Digits |
| Maximum Operating Temperature | +50°C |
| Best DC Current Accuracy | ±1.5% + 1 Digit |
| Battery Life | 200 h |
| Safety Category Level | CAT II, CAT III |
| Battery Type | 9V |
| Best DC Voltage Accuracy | ±1% + 1 Digit |
| Length | 32mm |
| Width | 72mm |
| Best AC Current Accuracy | ±2.5% + 5 Digits |
| Dimensions | 32 x 72 x 155mm |
