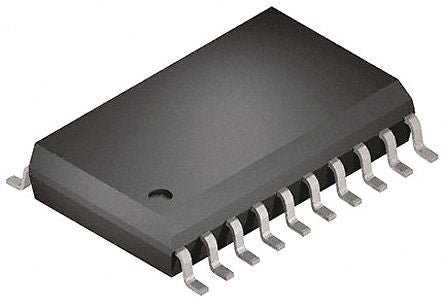

Digital Isolator 7-CH 1MHz SOIC20 [ADUM4153ARIZ]; 145-6260
0₫
Mã kho: 1456260
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Channels | 7 |
| Maximum Data Rate | 34Mbps |
| Package Type | SOIC |
| Maximum Forward Voltage | 5.5V |
| Maximum Input Current | 8.3 mA |
| Isolation Voltage | 5 kVrms |
| Rise Time | 2.5ns |
| Number of Pins | 20 |
| Mounting Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
| Length | 15.4mm |
| Depth | 2.44mm |
| Width | 7.6mm |
