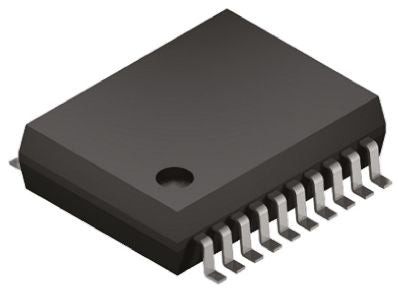

ADUM3482BRSZ Analog Devices, PCB SMT, 4-Channel Digital Isolator 25MBps, 3.75 kVrms, 20-Pin SSOP [ADUM3482BRSZ]; 159-9357
0₫
Mã kho: 1599357
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Data Rate | 25Mbps |
Number of Channels | 4 |
Package Type | SSOP |
Maximum Forward Voltage | 5.5V |
Maximum Input Current | 8.8 mA |
Isolation Voltage | 3.75 kVrms |
Rise Time | 1ms |
Number of Pins | 20 |
Mounting Type | Surface Mount |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +125°C |
Length | 7.5mm |
Depth | 1.85mm |
Width | 5.6mm |
