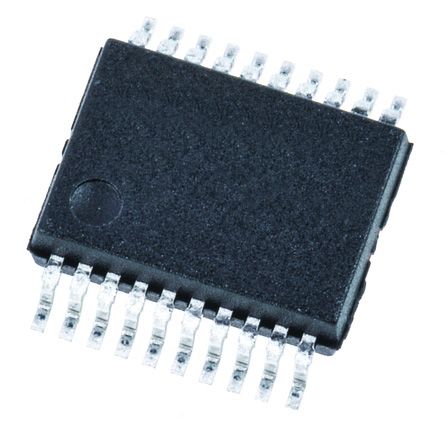

ADUM3480ARSZ Analog Devices, PCB SMT, 4-Channel Digital Isolator 1MBps, 3.75 kVrms, 20-Pin SSOP [ADUM3480ARSZ]; 145-1155
0₫
Mã kho: 1451155
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Data Rate | 1Mbps |
| Number of Channels | 4 |
| Package Type | SSOP |
| Maximum Input Current | 6.9 mA |
| Isolation Voltage | 3.75 kVrms |
| Rise Time | 2.5ns |
| Number of Pins | 20 |
| Mounting Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 125°C |
| Length | 7.5mm |
| Depth | 0.15mm |
| Width | 5.6mm |
