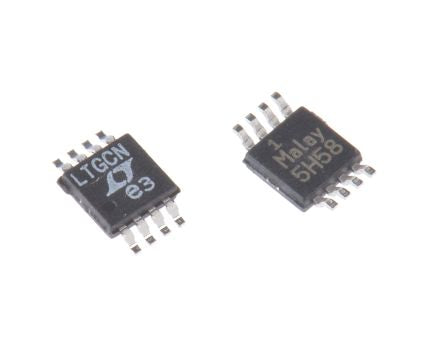

LTC6362IMS8#PBF Linear Technology, Differential Amplifier 180MHz Rail to Rail Input/Output 8-Pin MSOP [LTC6362IMS8#PBF]; 851-6859
0₫
Mã kho: 8516859
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Power Supply Type | Single |
Typical Single Supply Voltage | 2.8 → 5.25 V |
Maximum Input Offset Voltage | ±30mV |
Maximum Input Resistance | 230kΩ |
Maximum Voltage Gain | 95dB |
Typical Gain Bandwidth Product | 180MHz |
Minimum CMRR | 75dB |
Number of Channels per Chip | 1 |
Mounting Type | Surface Mount |
Package Type | MSOP |
Pin Count | 8 |
Rail to Rail | Rail to Rail Input/Output |
Maximum Supply Current | 1.18 mA |
Dimensions | 3 x 3 x 0.86mm |
Width | 3mm |
Height | 0.86mm |
Length | 3mm |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
