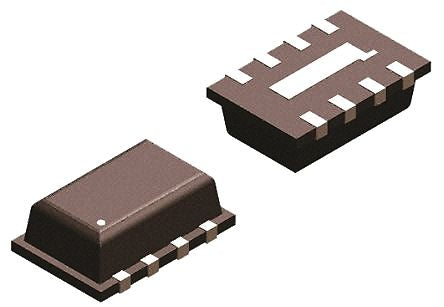

AD8137YCPZ-REEL7 Analog Devices, Differential Amplifier 110MHz Rail to Rail Output 8-Pin LFCSP WD [AD8137YCPZ-REEL7]; 809-9266
0₫
Mã kho: 8099266
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Power Supply Type | Single |
Typical Single Supply Voltage | 2.7 → 12 V |
Maximum Input Offset Voltage | 2.6mV |
Maximum Input Resistance | 800kΩ |
Maximum Voltage Gain | 91dB |
Typical Gain Bandwidth Product | 110MHz |
Minimum CMRR | 66dB |
Number of Channels per Chip | 1 |
Mounting Type | Surface Mount |
Package Type | LFCSP WD |
Pin Count | 8 |
Rail to Rail | Rail to Rail Output |
Maximum Supply Current | 245 μA |
Height | 0.8mm |
Maximum Operating Temperature | +125 °C |
Dimensions | 3.1 x 3.1 x 0.8mm |
Length | 3.1mm |
Minimum Operating Temperature | -40 °C |
Width | 3.1mm |
