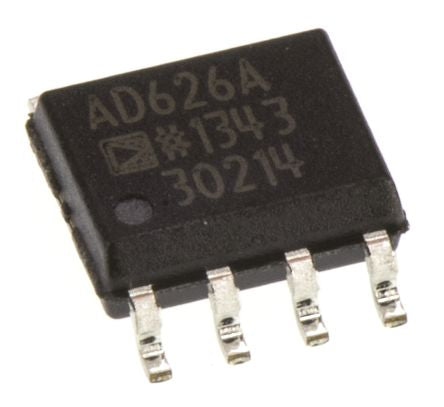

AD626ARZ Analog Devices, Differential Amplifier 8-Pin SOIC [AD626ARZ]; 523-0199
0₫
Mã kho: 5230199
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Power Supply Type | Dual, Single |
Typical Single Supply Voltage | 5 V |
Typical Dual Supply Voltage | ±5V |
Maximum Input Offset Voltage | 2.5mV |
Maximum Input Resistance | 0.02MΩ |
Minimum CMRR | 55dB |
Number of Channels per Chip | 1 |
Mounting Type | Surface Mount |
Package Type | SOIC |
Pin Count | 8 |
Minimum Operating Temperature | -40 °C |
Length | 5mm |
Dimensions | 5 x 4 x 1.5mm |
Width | 4mm |
Maximum Operating Temperature | +85 °C |
Height | 1.5mm |
