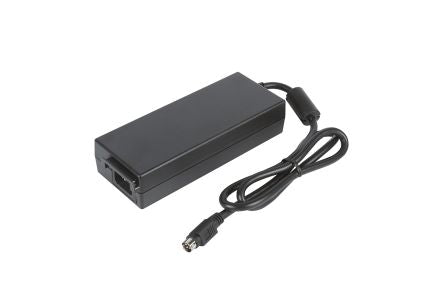

XP Power 15V dc Power Supply for Industrial, Medical, Maximum of 8A, C8 Connector [ALM120PS15C2-8]; 172-0774
by XP Power
0₫
Mã kho: 1720774
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Input Voltage Range | 80 → 264 V ac |
Output Voltage Rating | 15 V dc |
Output Current Range | Maximum of 8A |
Rated Output Power | 120W |
Input Connector | IEC320-C8 |
Output Connection Type | 4-Pin DC Barrel Jack |
Number of Outputs | 1 |
Plug Type | C8 |
Medical Approved | Yes |
Load Regulation Range | ±5% |
Energy Efficiency Level | VI |
Overall Width | 68mm |
Overall Depth | 38mm |
Minimum Temperature | 0°C |
Cable Length | 900mm |
Overall Length | 175.9mm |
Weight | 500g |
Maximum Temperature | +60°C |
Overall Dimensions | 175.9 x 68 x 38mm |
Series | ALM120 |
Operating Temperature Range | 0 → +60 °C |
Holdup Time | 30ms |
