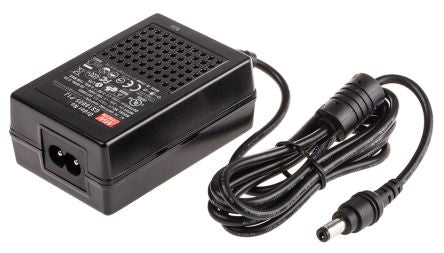

Mean Well 5V dc Power Supply, 3A [GS18B05-P1J]; 721-2168
by Mean Well
0₫
Mã kho: 7212168
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage Range | 90 → 264 V ac, 135 → 370 V dc |
| Output Voltage Rating | 5 V dc |
| Output Current Range | 3A |
| Input Connector | IEC320-C8 |
| Output Connection Type | 2.1 x 5.5 x 11 mm Centre Positive |
| Number of Outputs | 1 |
| Load Regulation Range | ±5% |
| Overall Depth | 33mm |
| Cable Length | 1230mm |
| Maximum Temperature | +50°C |
| Standards Met | ErP Compliant |
| Overall Width | 54mm |
| Energy Efficiency Level | V |
| Overall Dimensions | 79 x 54 x 33mm |
| Weight | 210g |
| Efficiency | 0.8 |
| Overall Length | 79mm |
| Operating Temperature Range | 0 → +50 °C |
| Minimum Temperature | 0°C |
