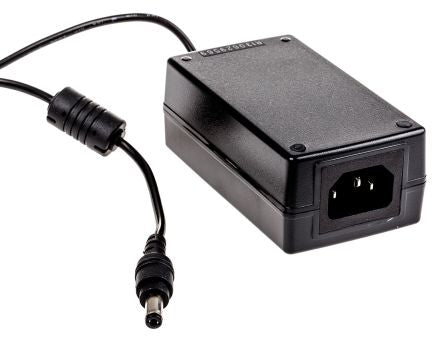

Mean Well 48V dc Power Supply, 375mA [GS18A48-P1J]; 667-5512
by Mean Well
0₫
Mã kho: 6675512
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage Range | 90 → 264 V ac, 135 → 370 V dc |
| Output Voltage Rating | 48 V dc |
| Output Current Range | 375mA |
| Input Connector | IEC320-C14 |
| Output Connection Type | P1J |
| Number of Outputs | 1 |
| Load Regulation Range | ±2% |
| Overall Dimensions | 93 x 54 x 36mm |
| Energy Efficiency Level | V |
| Operating Temperature Range | 0 → +50 °C |
| Overall Width | 54mm |
| Weight | 230g |
| Efficiency | 0.85 |
| Overall Length | 93mm |
| Minimum Temperature | 0°C |
| Standards Met | ErP Compliant |
| Maximum Temperature | +50°C |
| Cable Length | 1830mm |
| Overall Depth | 36mm |
