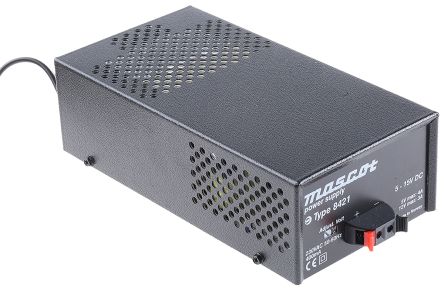

Mascot 5 → 15V dc Power Supply, 4A [8421-5/15]; 218-4734
by Mascot
0₫
Mã kho: 2184734
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Input Voltage Range | 230 V ac |
Output Voltage Rating | 5 → 15V dc |
Output Current Range | 4A |
Output Connection Type | Snap-Lock Terminal |
Number of Outputs | 1 |
Load Regulation Range | ±1.5% |
Maximum Temperature | +40°C |
Overall Depth | 55mm |
Overall Width | 100mm |
Overall Dimensions | 190 x 100 x 55mm |
Weight | 1.3kg |
Minimum Temperature | -10°C |
Efficiency | 0.6 |
Overall Length | 190mm |
Operating Temperature Range | -10 → +40 °C |
