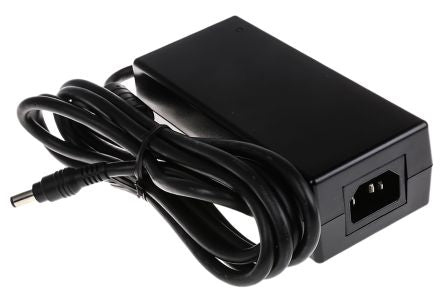

Artesyn Embedded Technologies 24V dc Power Supply, 2.5A [DPS55]; 513-1339
0₫
Mã kho: 5131339
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Input Voltage Range | 90 → 264 V ac, 127 → 300 V dc |
Output Voltage Rating | 24 V dc |
Output Current Range | 2.5A |
Input Connector | IEC320-C14 |
Output Connection Type | 2.5 mm Centre Positive |
Number of Outputs | 1 |
Medical Approved | Yes |
Load Regulation Range | ±2% |
Maximum Temperature | +40°C |
Cable Length | 2000mm |
Overall Dimensions | 133 x 60.7 x 41mm |
Weight | 480g |
Overall Length | 133mm |
Energy Efficiency Level | V |
Overall Depth | 41mm |
Minimum Temperature | 0°C |
Operating Temperature Range | 0 → +40 °C |
Efficiency | 0.8 |
Overall Width | 60.7mm |
Standards Met | ErP Compliant |
